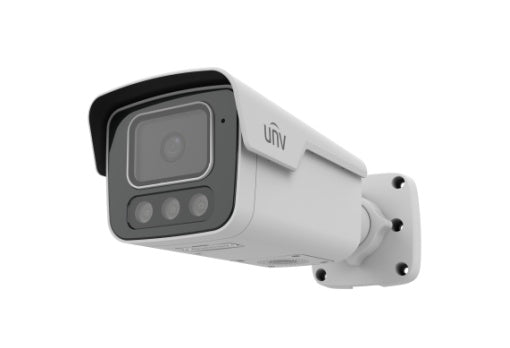

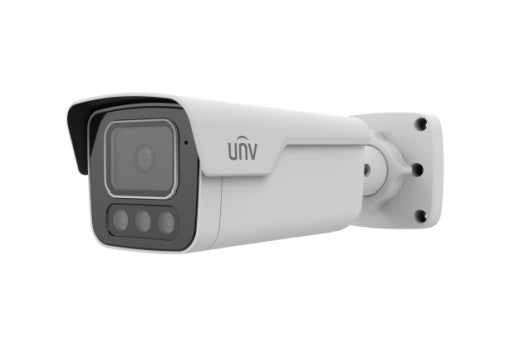

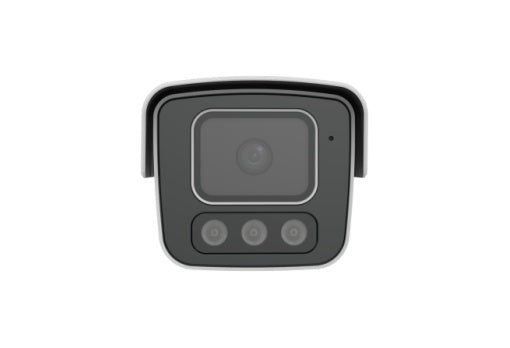

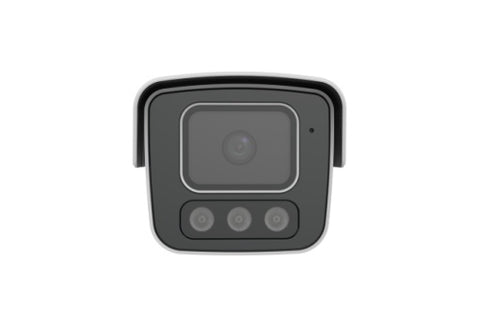

Uniview IPC2B14SS-ADF28KMC-I1 – 4MP Tri-Guard Fixed Dual-light Bullet Network Camera
The Uniview IPC2B14SS-ADF28KMC-I1 is a 4MP Tri-Guard Fixed Dual-light Bullet Network Camera designed to deliver high-quality surveillance with advanced features. Equipped with intelligent perimeter protection, this camera accurately detects human and vehicle movements, reducing false alarms caused by environmental factors. Its dual-light technology combines infrared and warm light illumination, ensuring clear images in various lighting conditions. With an IP67 weatherproof rating, this camera is suitable for both indoor and outdoor installations.
Key Features
- High-Quality Imaging: 4MP resolution with a 1/2.7" CMOS sensor delivers clear and detailed visuals.
- Dual-light Technology: Combines infrared and warm light illumination for superior night vision up to 40 meters.
- Intelligent Perimeter Protection: Features cross line, intrusion, enter area, and leave area detection with false alarm filtering.
- Audio Capabilities: Built-in microphone and speaker enable real-time two-way communication.
- Weatherproof Design: IP67-rated housing ensures durability in various weather conditions.
- Storage Options: Supports up to 512GB Micro SD card for ample local storage.
Technical Specifications
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Resolution | 4MP (2688×1520) @ 30fps |
| Lens | 2.8mm Fixed Lens |
| Field of View | Horizontal: 102.3°, Vertical: 54.7°, Diagonal: 106.8° |
| Illumination Distance | IR: Up to 40m, Warm Light: Up to 40m |
| WDR | 130dB |
| Audio | 1 Input / 1 Output, Built-in Mic & Speaker |
| Alarm | 1 Input / 1 Output |
| Storage | Supports Micro SD Card up to 512GB |
| Power Supply | DC12V ±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 10W |
| Protection | IP67 |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Dimensions | 269 × 96 × 82 mm (10.6” × 3.8” × 3.2”) |
| Weight | 970g (2.14lb) |
Applications
Ideal for residential, commercial, and industrial environments, the IPC2B14SS-ADF28KMC-I1 provides reliable surveillance with high-definition video and intelligent detection capabilities.
