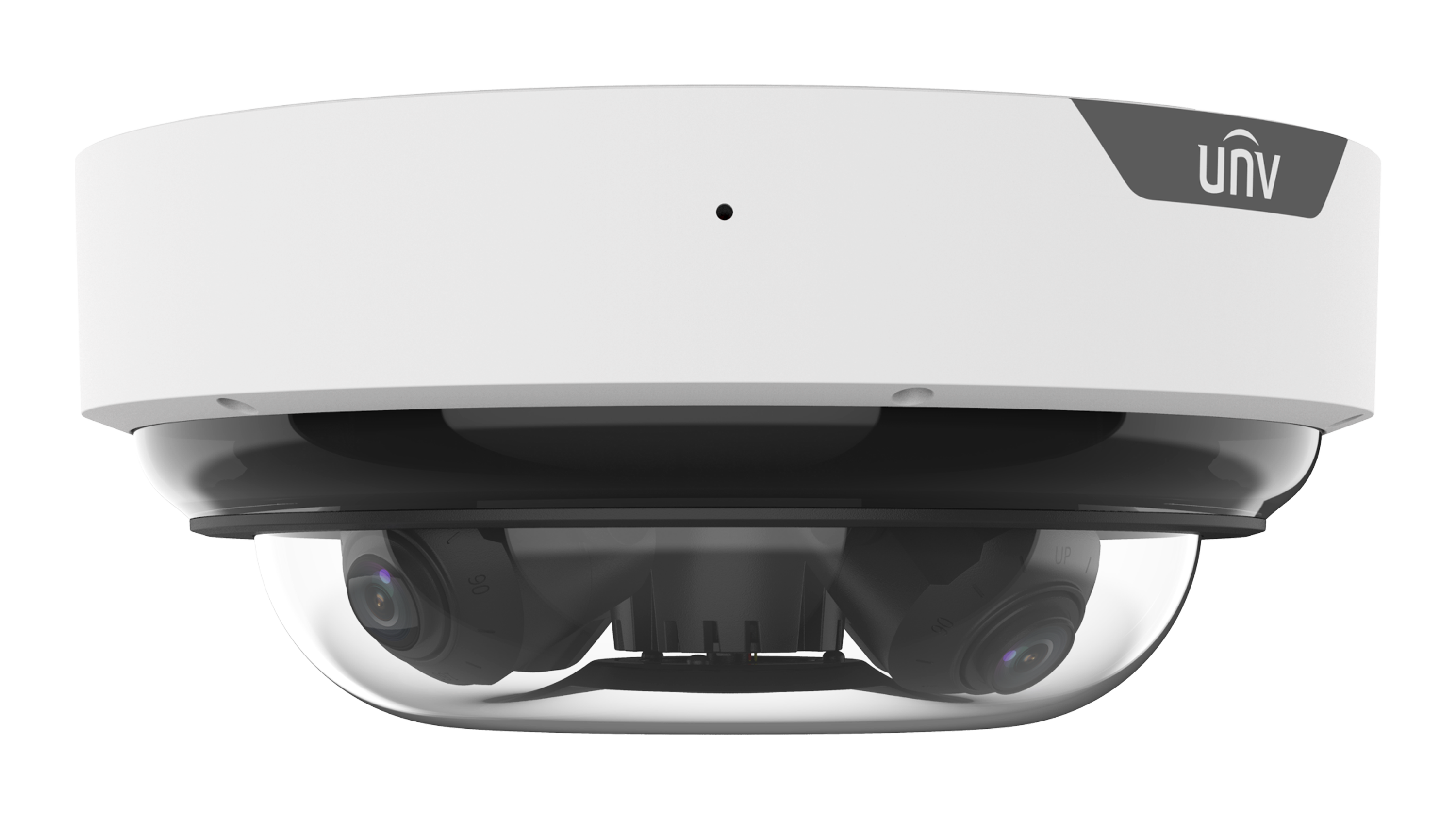

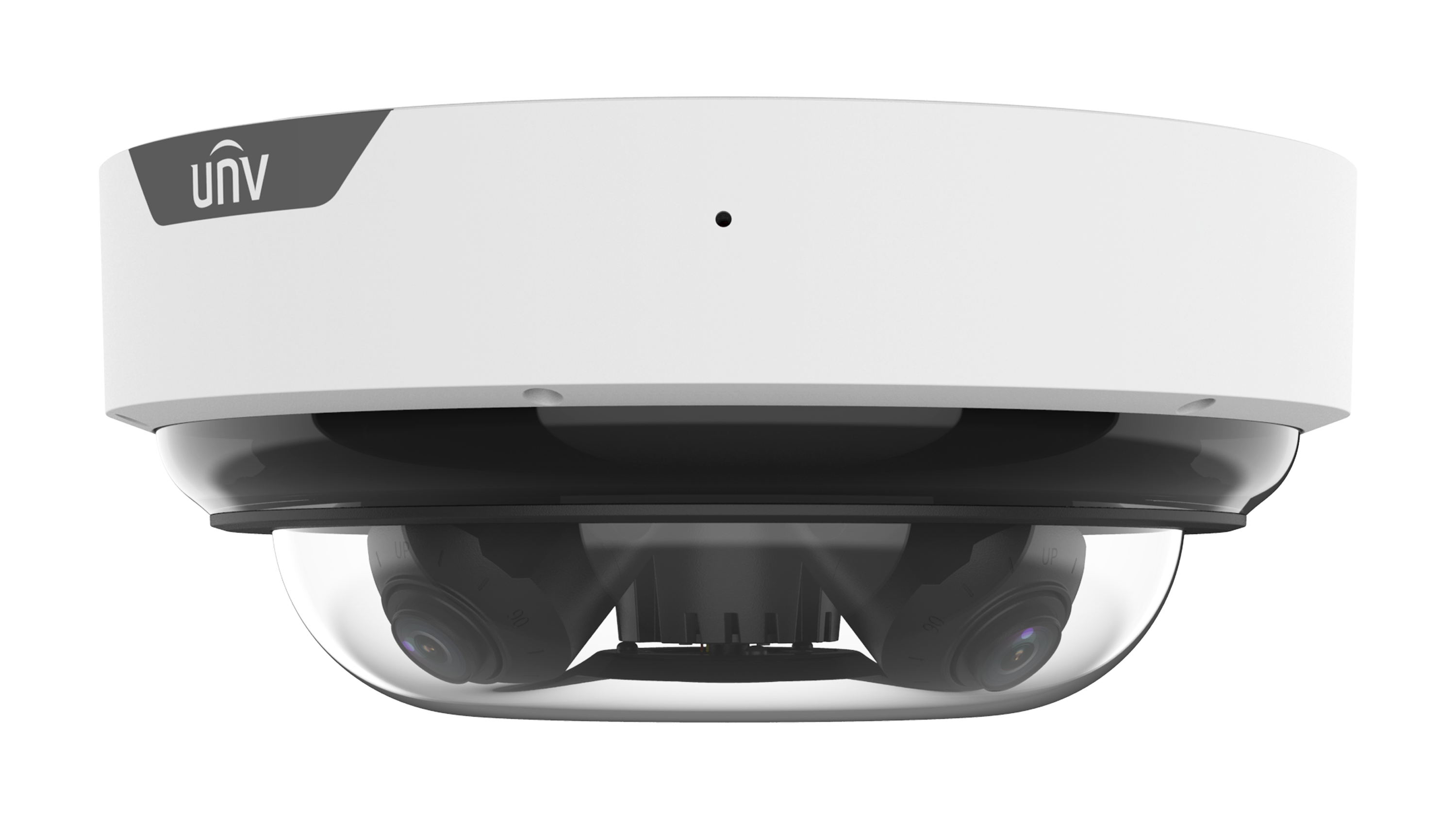

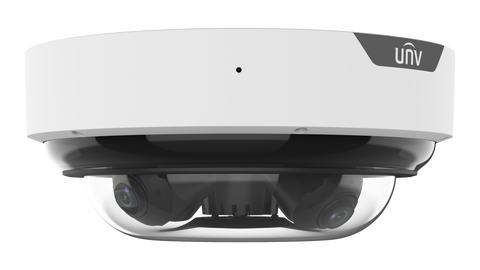

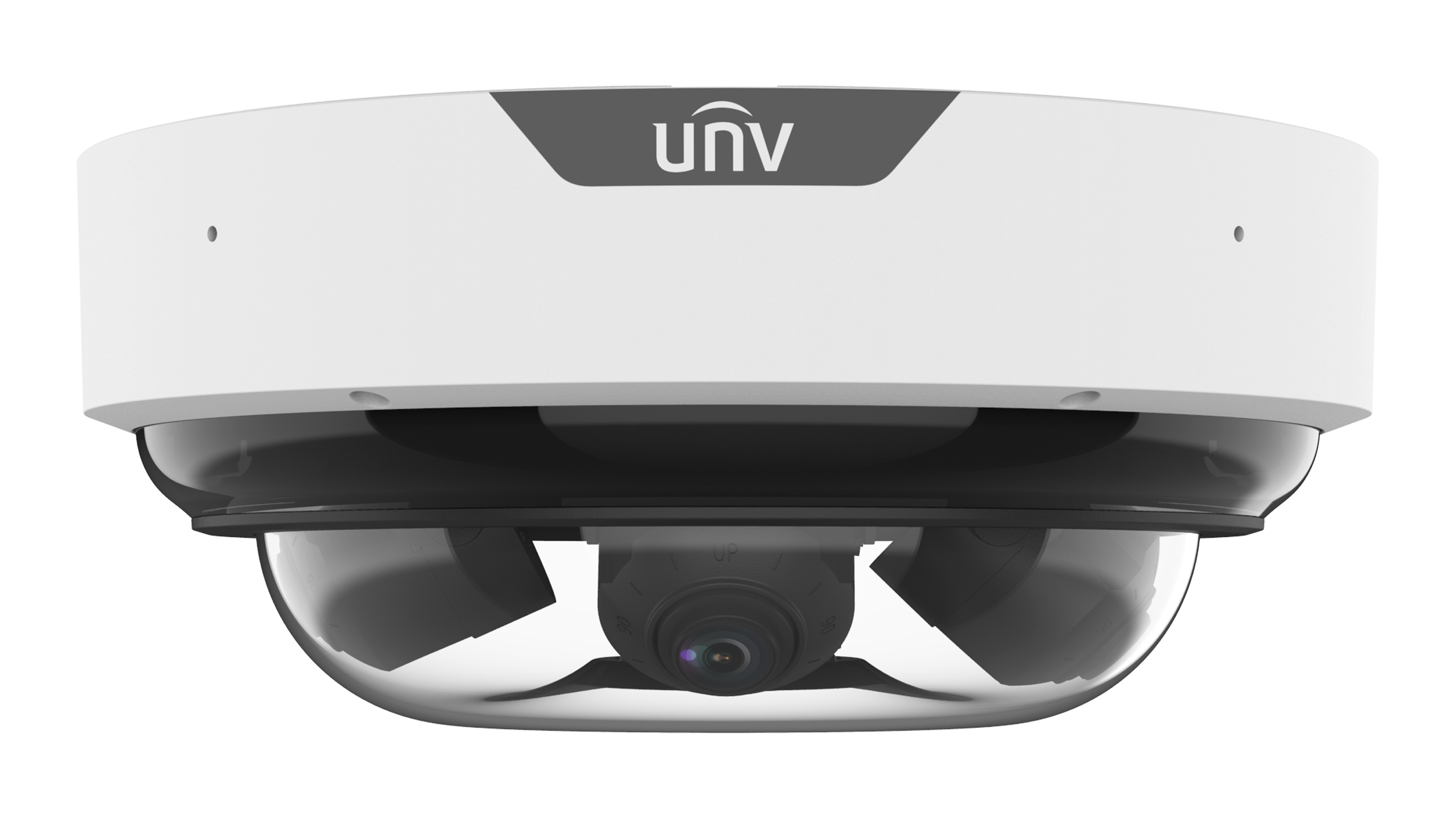

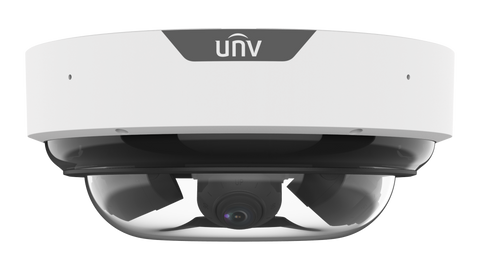

xUniview 4x5MP LightHunter Multi-Sensor Varifocal Dome Camera
Model: IPC8645EA-ADZKM-I1
The Uniview IPC8645EA-ADZKM-I1 combines four 5MP LightHunter sensors into a single dome, delivering comprehensive 360° coverage with exceptional low-light performance. Each lens offers independent pan, tilt, and rotation adjustments, along with motorized 5x optical zoom, making it ideal for monitoring expansive areas such as warehouses, transportation hubs, and public spaces.
Key Specifications
- Resolution: 4x 5MP (2880×1620) @30fps per channel
- Sensor: 1/2.7" CMOS per lens
- Lens: 2.7–13.5mm motorized varifocal, 5x optical zoom
- Field of View: Horizontal 110.3°–31°, Vertical 57.1°–17.5°, Diagonal 130.2°–67.4°
- IR Illumination: Up to 50m (164ft) per lens
- WDR: 130dB Optical Wide Dynamic Range
- Compression: Ultra 265, H.265, H.264, MJPEG
- Smart Features: Intrusion detection, cross line detection, enter/leave area detection with human/vehicle classification
- People Counting: Supports people flow counting and crowd density monitoring
- Audio: Built-in microphone, 1 input and 1 output, G.711U/A compression
- Storage: Supports up to 512GB microSD card
- Protection: IP67 weatherproof, IK10 vandal-resistant
- Power: PoE++ (IEEE 802.3bt), 24V AC/DC
- Compliance: NDAA compliant
Compatibility
- Mounts: TR-UF45-K-IN (adapter plate), TR-WE45-A-IN (wall mount), TR-UC08-A-IN (corner mount), TR-CE45-IN (ceiling mount)
- NVRs: Compatible with Uniview ONVIF-compliant NVRs
