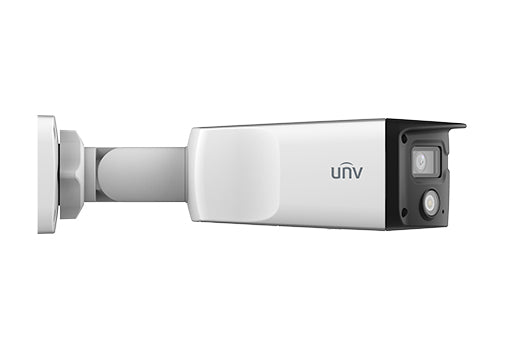

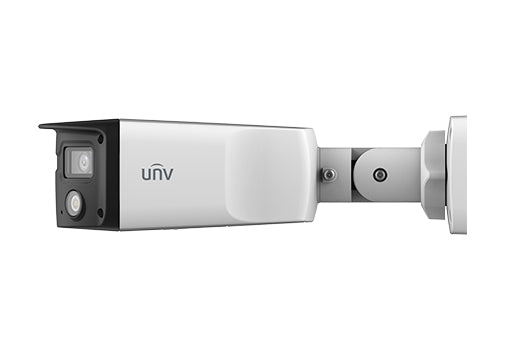

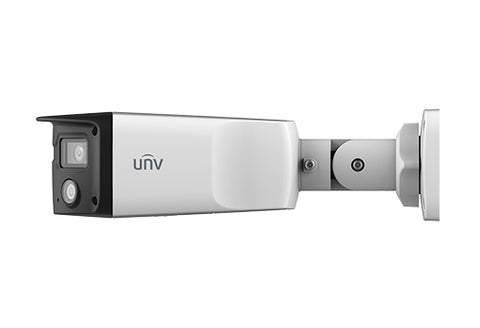

Uniview IPC2K24SE-ADF40KMC-WL-I0 – 4MP ColorHunter Wide-Angle Fixed Bullet Network Camera

The Uniview IPC2K24SE-ADF40KMC-WL-I0 is a 4MP ColorHunter Wide-Angle Fixed Bullet Network Camera designed to deliver high-quality surveillance with advanced features. Equipped with dual-lens splicing technology, this camera provides a panoramic 160° horizontal field of view, effectively covering wide areas with a single device. Its ColorHunter technology ensures 24/7 full-color imaging, capturing vivid details even in low-light conditions. With an IP67 weatherproof rating, this camera is suitable for both indoor and outdoor installations.

Key Features

• High-Quality Imaging: 4MP resolution with a 1/2.9" CMOS sensor delivers clear and detailed visuals.

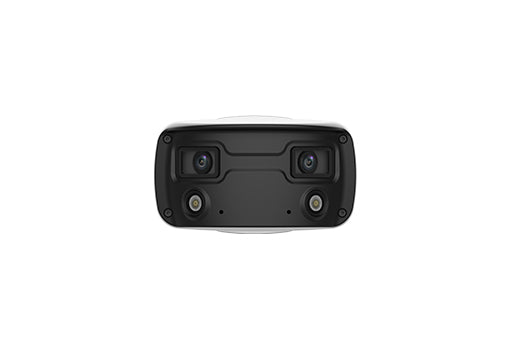

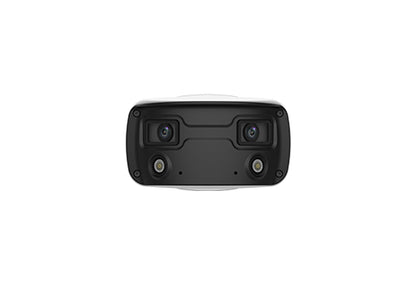

• Wide-Angle View: Dual-lens splicing technology achieves a 160°±10° horizontal field of view.
• ColorHunter Technology: Ensures full-color images 24/7, even in low-light environments.
• Smart Detection: Supports human body detection, motion detection, tampering alarm, and audio detection.
• Audio Capabilities: Built-in speaker and dual microphones enable real-time two-way communication.
• Weatherproof Design: IP67-rated housing ensures durability in various weather conditions.
• Storage Options: Supports up to 256GB Micro SD card for ample local storage.

Technical Specifications

Image Sensor	1/2.9" CMOS
Resolution	4MP (3840×1080) @ 25fps (Human Body Detection off); 4MP (3840×1080) @ 20fps (Human Body Detection on)
Lens	2 × 4.0mm @ F1.0 Fixed Lens
Field of View	Horizontal: 160°±10°, Vertical: 43.22°, Diagonal: 180.13°±10°
Illumination Distance	Up to 30m (98ft) with warm light LEDs
WDR	DWDR
Audio	1 Input / 1 Output, Built-in Speaker and Dual Microphones
Alarm	1 Input / 1 Output
Storage	Supports Micro SD Card up to 256GB
Power Supply	DC12V ±25%, PoE (IEEE 802.3af)
Power Consumption	Max 6.5W
Protection	IP67
Operating Temperature	-30°C ~ 60°C (-22°F ~ 140°F)
Dimensions	To be confirmed
Weight	To be confirmed

Applications

Ideal for wide-area surveillance such as parking lots, plazas, and large open spaces, the IPC2K24SE-ADF40KMC-WL-I0 provides comprehensive coverage with high-definition, full-color video and intelligent detection capabilities.
