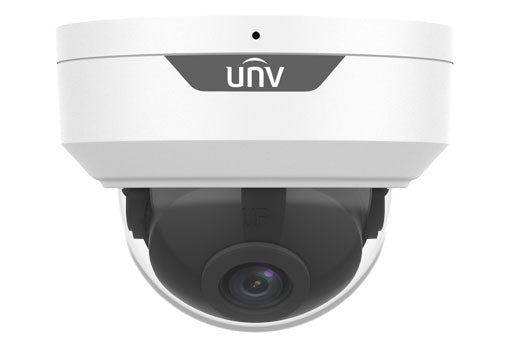

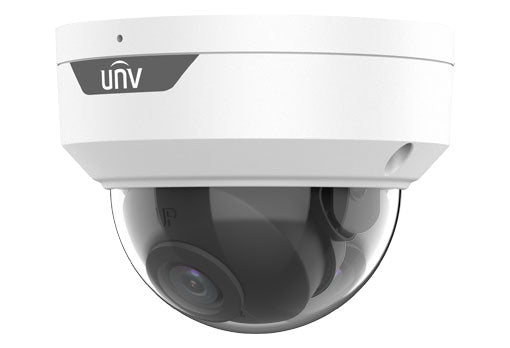

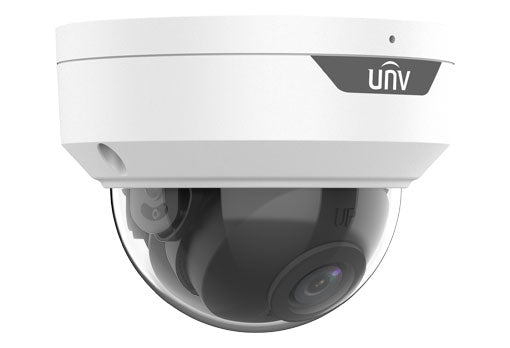

Uniview IPC328SR3-ADF28KM-G – 8MP LightHunter IR Fixed Dome Network Camera

The Uniview IPC328SR3-ADF28KM-G is an 8MP LightHunter IR Fixed Dome Network Camera designed to deliver high-quality surveillance with advanced features. Equipped with intelligent perimeter protection, this camera accurately detects human and vehicle movements, reducing false alarms caused by environmental factors. Its smart IR technology provides up to 30 meters of infrared night vision, ensuring clear images in various lighting conditions. With an IP67 weatherproof and IK10 vandal-resistant rating, this camera is suitable for both indoor and outdoor installations.

Key Features

• High-Quality Imaging: 8MP resolution with a 1/2.7" CMOS sensor delivers clear and detailed visuals.
• Smart IR: Provides up to 30 meters (98 feet) of infrared night vision.
• Intelligent Perimeter Protection: Features cross line, intrusion, enter area, and leave area detection with false alarm filtering.
• Audio Capabilities: Built-in microphone allows for real-time audio monitoring.
• Weatherproof and Vandal-Resistant Design: IP67 and IK10-rated housing ensures durability in various conditions.
• Storage Options: Supports up to 256GB Micro SD card for ample local storage.

Technical Specifications

Image Sensor	1/2.7" CMOS
Resolution	8MP (3840×2160) @ 20fps; 5MP (3072×1728) @ 30fps; 4MP (2560×1440) @ 30fps; 2MP (1920×1080) @ 30fps
Lens	2.8mm Fixed Lens
Field of View	Horizontal: 112.9°, Vertical: 59.1°, Diagonal: 121.2°
Illumination Distance	Up to 30m (98ft) IR range
WDR	120dB
Audio	Built-in Microphone
Storage	Supports Micro SD Card up to 256GB
Power Supply	DC12V ±25%, PoE (IEEE 802.3af)
Power Consumption	Max 4.5W
Protection	IP67, IK10
Operating Temperature	-30°C ~ 60°C (-22°F ~ 140°F)
Dimensions	Φ109 × 83mm (4.3” × 3.3”)
Weight	0.37kg (0.82lb)

Applications

Ideal for residential, commercial, and industrial environments, the IPC328SR3-ADF28KM-G provides reliable surveillance with high-definition video and intelligent detection capabilities.
