Description

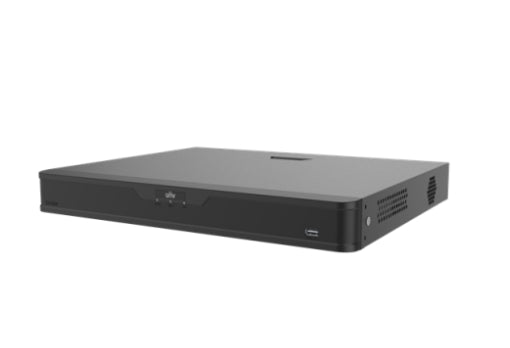

xUniview 32-Channel 4K AI Network Video Recorder
Model: NVR302-32B-IQ
The Uniview NVR302-32B-IQ is a high-performance, 32-channel Network Video Recorder (NVR) that supports up to 12MP recording resolution. Designed for advanced surveillance applications, it offers AI-powered analytics, Ultra H.265 compression, and seamless integration with ONVIF-compliant cameras.
Key Specifications
- Video Compression: Ultra H.265, H.265, H.264
- IP Video Input: 32 channels
- Recording Resolution: Up to 12MP
- Decoding Capability:
- Smart Off: 2 × 12MP@30fps, 2 × 4K@30fps, 4 × 4MP@30fps, 10 × 1080P@30fps, 20 × 720P@30fps, 32 × D1
- Smart On: 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps, 16 × 720P@30fps, 32 × D1
- Video Output:
- HDMI: Up to 4K (3840×2160) resolution
- VGA: Up to 1920×1080 resolution
- Audio Input/Output: 1-ch RCA input, 1-ch RCA output
- Two-way Audio: Supported via RCA
- Live View Display: 1/4/6/8/9/16/25/32
- Playback: 1/4/9/16 channels
- Snapshot: 4-ch snapshot, up to D1 resolution
- Recording Modes: Manual, Schedule, Event
- Storage:
- 2 SATA interfaces, up to 10TB for each HDD
- Network:
- Incoming Bandwidth: 160Mbps
- Outgoing Bandwidth: 128Mbps
- Remote Users: Up to 128
- Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
- USB Ports:
- Front Panel: 1 × USB 2.0
- Rear Panel: 1 × USB 2.0, 1 × USB 3.0
- Power Supply: DC 12V/3A
- Power Consumption (without HDD): ≤12W
- Working Environment:
- Temperature: -10°C ~ +55°C (14°F ~ 131°F)
- Humidity: ≤90% RH (non-condensing)
- Dimensions: 380mm × 315mm × 53mm (15.0" × 12.4" × 2.1")
- Weight (without HDD): ≤2Kg (4.4lb)
- Certifications: CE, FCC, UL, RoHS, WEEE
Advanced Features
- AI-Powered Analytics:
- Face Detection
- Vehicle Detection
- Smart Intrusion Prevention (SIP)
- Ultra Motion Detection (UMD)
- People Counting
- Traffic Monitoring
- VCA Search Capabilities:
- Motor Vehicle Search
- Non-Motor Vehicle Search
- Human Body Search
- People Counting Report
- Heat Map
- Vehicle Picture Library: Up to 5 libraries with a total of 25,000 vehicle pictures
- ANR Technology: Enhances storage reliability when the network is disconnected
- Cloud Upgrade: Supports firmware upgrades via the cloud
- Comprehensive Alarm Support:
- Defocus Detection
- Scene Change Detection
- Object Left Behind
- Object Removed
- Auto Tracking
- Motion Detection
- Tampering
- Human Body Detection
- Video Loss
- Alarm Input
- Audio Detection
- Alert Alarms:
- IP Conflict
- Network Disconnected
- Disk Offline
- Disk Abnormal
- Illegal Access
- Hard Disk Space Low
- Hard Disk Full
- Recording/Snapshot Abnormal
Compatibility
- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Compatible with Uniview IP Cameras and third-party IP cameras
