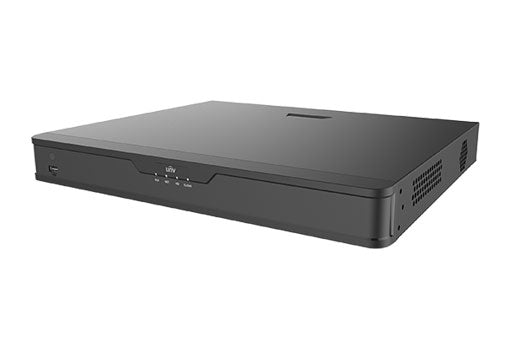

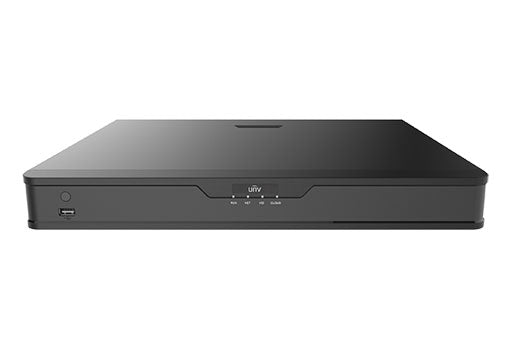

xUniview 32-Channel 4K Network Video Recorder
Model: NVR302-32S
The Uniview NVR302-32S is a high-performance 32-channel Network Video Recorder (NVR) supporting up to 8MP resolution recording. It offers Ultra265/H.265/H.264 video compression, dual HDMI/VGA output, and compatibility with ONVIF-compliant cameras, making it ideal for advanced surveillance applications.
Key Specifications
- Video Compression: Ultra265, H.265, H.264
- IP Video Input: 32 channels
- Recording Resolution: Up to 8MP
- Decoding Capability:
- 2 × 4K@30fps
- 3 × 5MP@30fps
- 4 × 4MP@30fps
- 5 × 3MP@30fps
- 8 × 1080P@30fps
- 16 × 720P@30fps
- 32 × D1
- Video Output:
- HDMI: Up to 4K (3840×2160) resolution
- VGA: Up to 1920×1080 resolution
- Audio Input/Output: 1-ch RCA input, 1-ch RCA output
- Two-way Audio: Supported via RCA
- Live View Display: 1/4/6/8/9/16/25/36
- Playback: 1/4/9/16 channels
- Snapshot: 4-ch snapshot, up to D1 resolution
- Recording Modes: Manual, Schedule, Event
- Storage:
- 2 SATA interfaces, up to 8TB for each HDD
- Network:
- Incoming Bandwidth: 160Mbps
- Outgoing Bandwidth: 64Mbps
- Remote Users: Up to 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
- USB Ports:
- Front Panel: 1 × USB 2.0
- Rear Panel: 1 × USB 2.0, 1 × USB 3.0
- Power Supply: DC 12V
- Power Consumption (without HDD): ≤15W
- Working Environment:
- Temperature: -10°C ~ +55°C (14°F ~ 131°F)
- Humidity: ≤90% RH (non-condensing)
- Dimensions: 380mm × 315mm × 53mm (15.0" × 12.4" × 2.1")
- Weight (without HDD): ≤2.48 Kg (5.47 lb)
- Certifications: CE, FCC, UL, RoHS, WEEE
Advanced Features
- AI-Powered Analytics:
- Face Detection
- Intrusion Detection
- Line Crossing Detection
- Audio Detection
- Defocus Detection
- Scene Change Detection
- Auto Tracking
- People Counting
- VCA Search Capabilities:
- Face Search
- Behavior Search
- ANR Technology: Enhances storage reliability when the network is disconnected
- Cloud Upgrade: Supports firmware upgrades via the cloud
Compatibility
- Supports mainstream cameras with ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Compatible with Uniview IP Cameras and third-party IP cameras
