Description

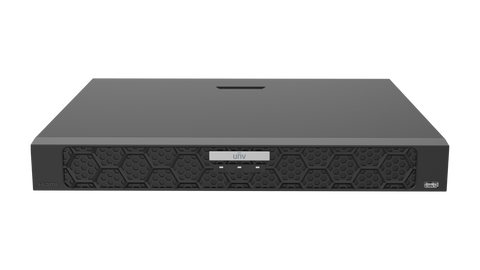

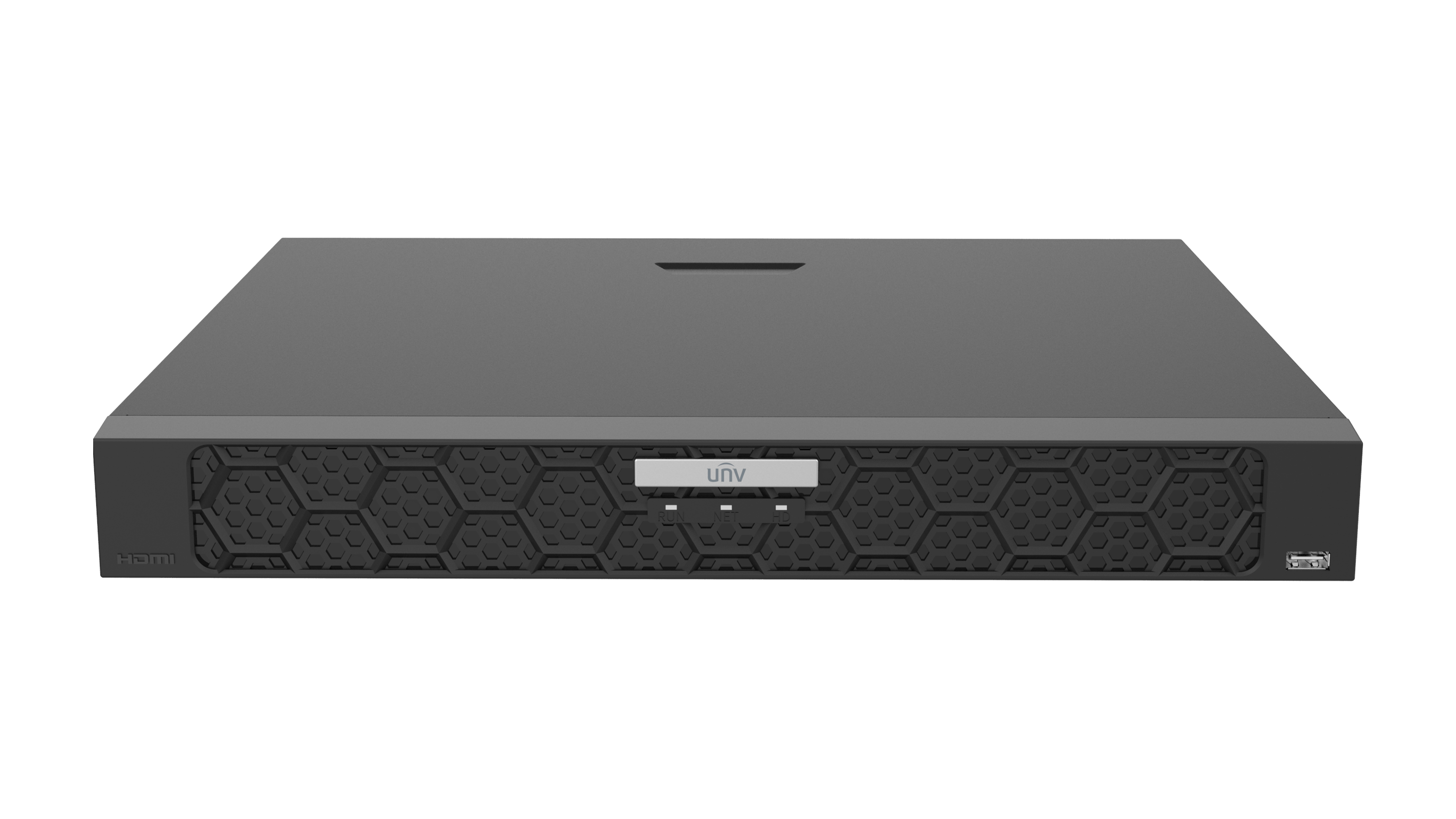

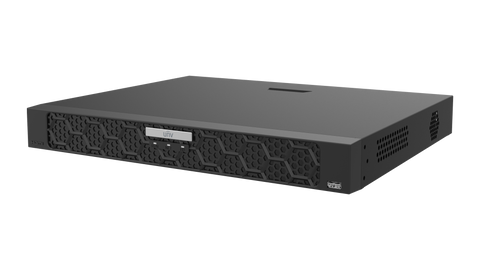

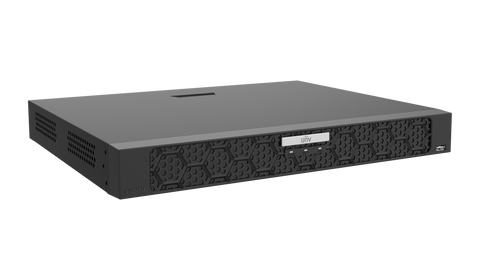

xUniview 16-Channel PoE Network Video Recorder
Model Number: NVR502-16B-P16
The Uniview NVR502-16B-P16 is a robust 16-channel PoE NVR with built-in AI compatibility, designed for demanding commercial and large-scale residential installations. It offers seamless Plug & Play functionality, supports Ultra265 compression, and delivers crystal-clear 4K HDMI output for advanced surveillance systems.
Key Specifications:
- Supports up to 16 IP camera inputs with 16 built-in PoE ports
- Supports Ultra265, H.265, and H.264 video formats
- Up to 16MP recording resolution with HDMI output up to 4K
- AI support: Face detection, intrusion detection, people counting, temperature detection
- Dual HDMI and VGA independent video outputs
- 2 SATA interfaces, supporting up to 32TB total storage (16TB per HDD)
- NDAA Compliant, supports ONVIF profiles S, G, T
- Max 240W PoE power budget, 30W per port
- Web access supported on Chrome, Edge, Firefox, and IE
Compatibility:
- Compatible with all Uniview IP cameras, including ColorHunter and LightHunter series
- PoE switches not required due to integrated 16-port PoE
- Works with mounting accessory RM-1U-380 (Rack Mount Kit)
- Integrates with Uniview’s EZView and UNV-Link mobile apps
