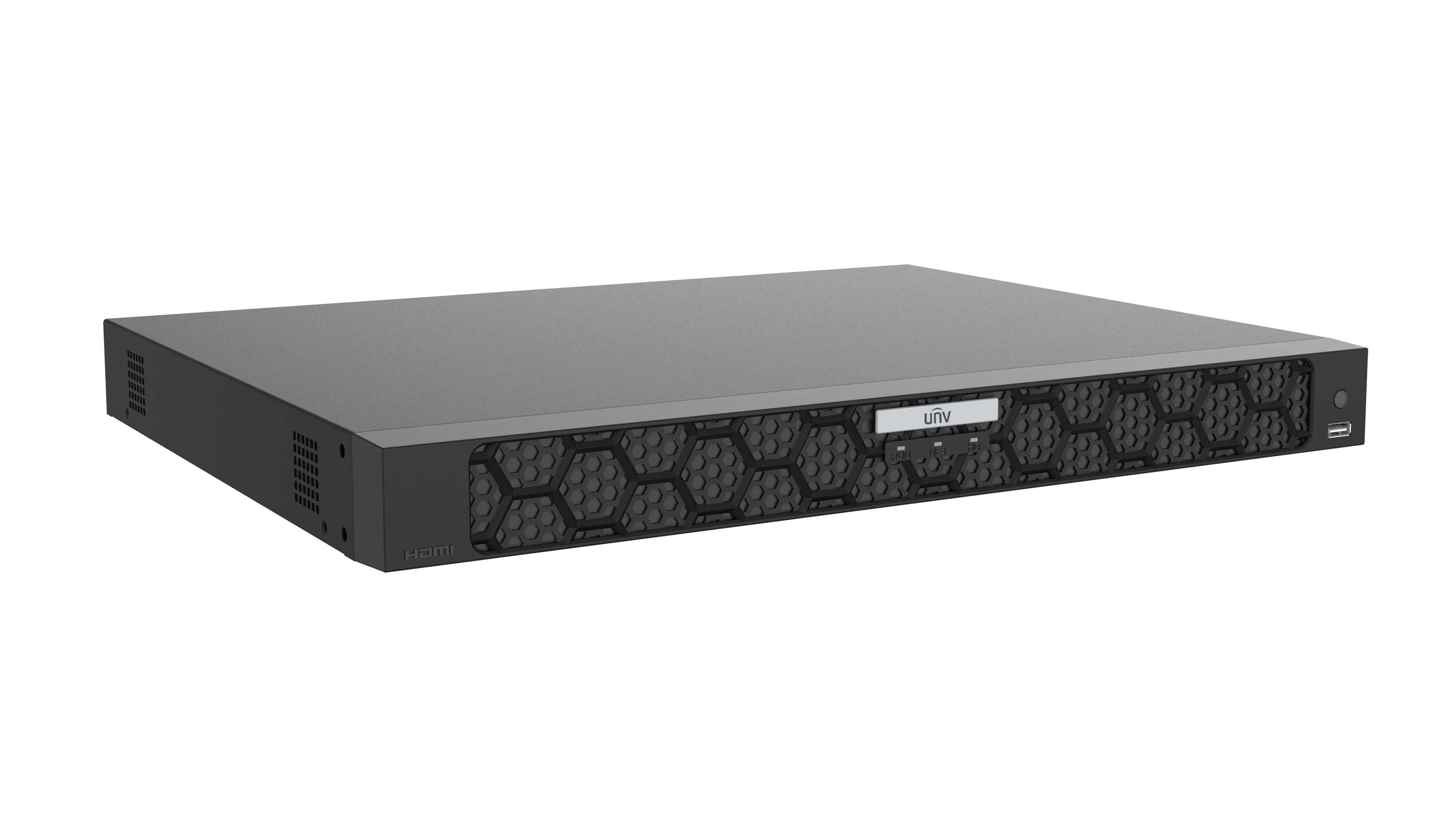

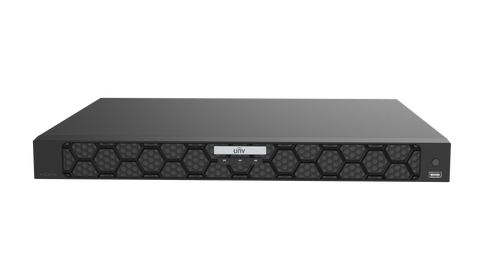

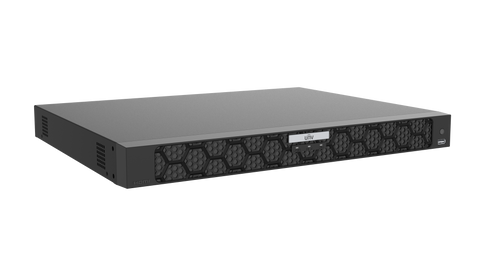

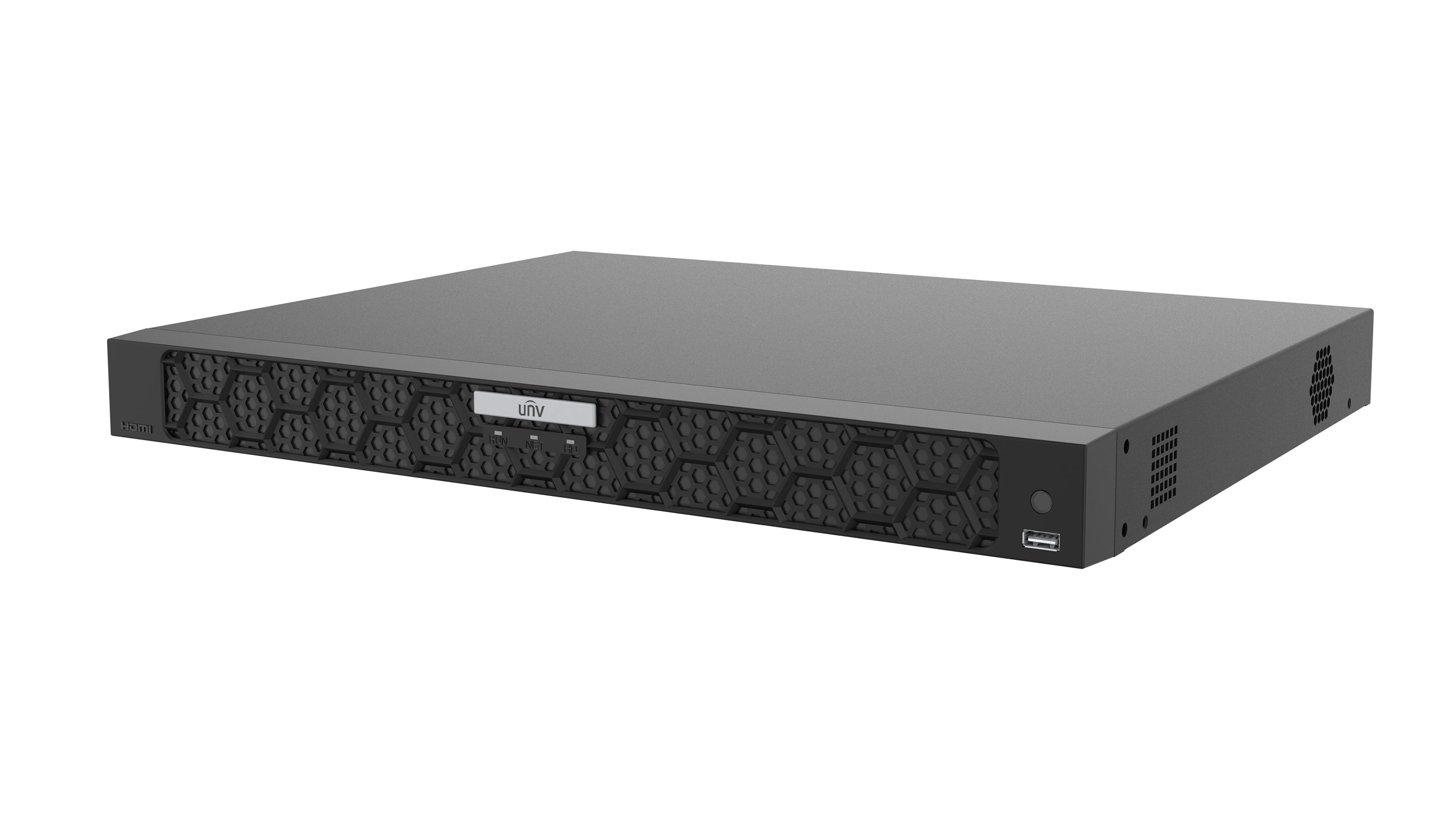

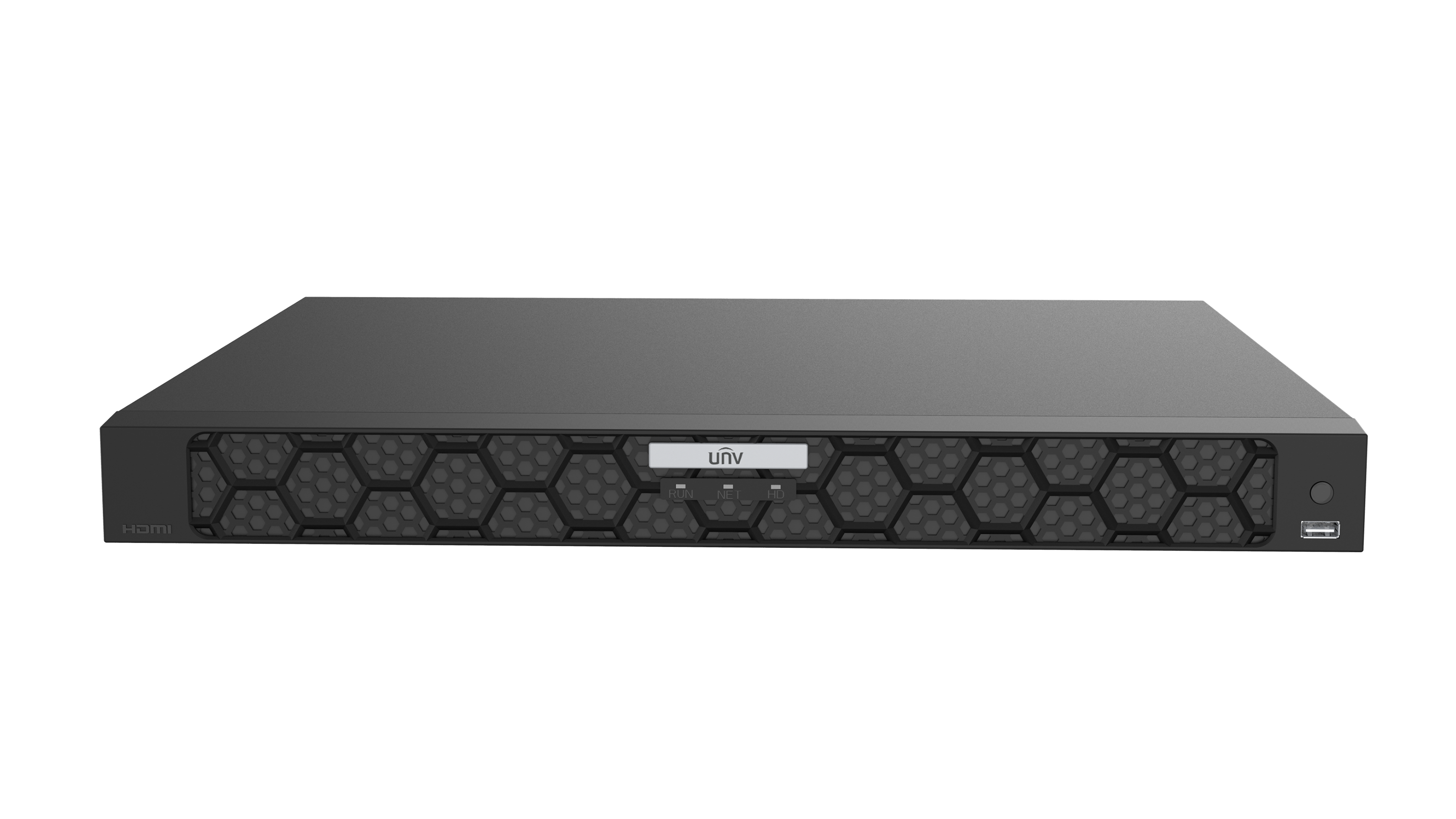

xUniview 32-Channel Network Video Recorder
Model Number: NVR504-32B
The Uniview NVR504-32B is a high-capacity 32-channel NVR built for enterprise-level surveillance systems. With support for Ultra265, dual Ethernet ports, RAID storage, and up to 16MP recording, it’s engineered for scalable, reliable video management in large commercial applications.
Key Specifications:
- 32 IP camera inputs with up to 16MP recording resolution
- Supports Ultra265, H.265, and H.264 compression formats
- Dual HDMI and VGA outputs, HDMI up to 4K
- 4 SATA interfaces supporting up to 64TB total storage, RAID 1/5 supported
- AI support via IPC: Face/Vehicle Detection, People Counting, UMD
- 320 Mbps incoming, 160 Mbps outgoing bandwidth
- Smart VCA integration: Intrusion, Line Crossing, Heat Map, and more
- Dual Gigabit Ethernet ports for redundancy or multi-network use
- NDAA Compliant, ONVIF profiles S/G/T compatible
Compatibility:
- Works with Uniview AI-capable IP cameras including ColorHunter, LightHunter series
- Supports EZView, UNV-Link, and Uniview CMS platforms for remote access
- Rack-mountable with standard 1.5U server racks
- Compatible with advanced VCA analytics when paired with Uniview cameras
