Description

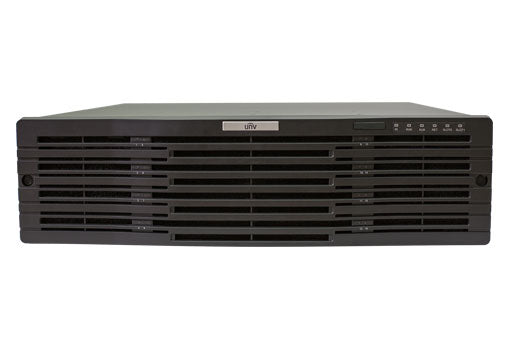

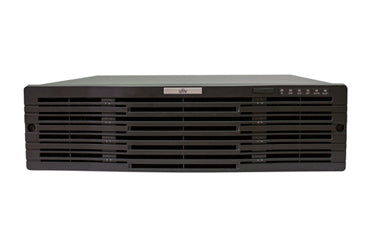

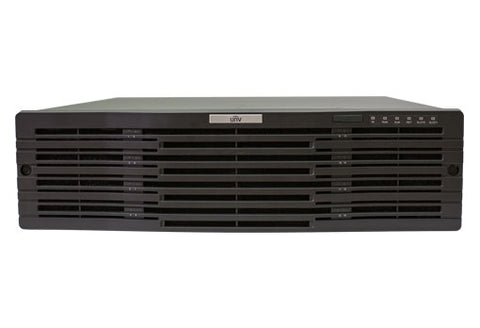

xUniview 128-Channel Enterprise Network Video Recorder
Model Number: NVR516-128-IN
The Uniview NVR516-128-IN is an enterprise-grade 128-channel NVR offering unparalleled scalability, high-throughput recording, and advanced redundancy. Ideal for critical infrastructure, city surveillance, and large campuses, it combines RAID 60 support, hot-swap drives, and ultra-high bandwidth for unmatched reliability.
Key Specifications:
- 128 IP camera inputs, up to 12MP recording resolution per channel
- Supports Ultra265, H.265, H.264 compression formats
- 2 HDMI outputs (up to 4K), 1 VGA output – all independent
- 16 SATA interfaces, up to 256TB storage, RAID 0/1/5/6/10/50/60, hot swap supported
- 4 RJ45 + 2 SFP Gigabit network interfaces
- 512 Mbps incoming, 384 Mbps outgoing bandwidth
- VCA by IPC: Face/Vehicle Detection, SIP, UMD, People Counting, Metadata
- NDAA Compliant, ONVIF S/G/C/Q/A/T supported
- Redundant power supply option for continuous uptime
Compatibility:
- Optimized for Uniview’s full range of IP cameras including third-party ONVIF-compliant devices
- Works with EZView, UNV-Link, and Uniview CMS for centralized monitoring
- 2 miniSAS ports for external storage expansion
- Rack-mountable 3U chassis suitable for data centers and high-security environments
