xNVR516-128E-R
128-Channel Enterprise Network Video Recorder
This NVR is shown for reference only and is not for sale on UniviewPro.com.

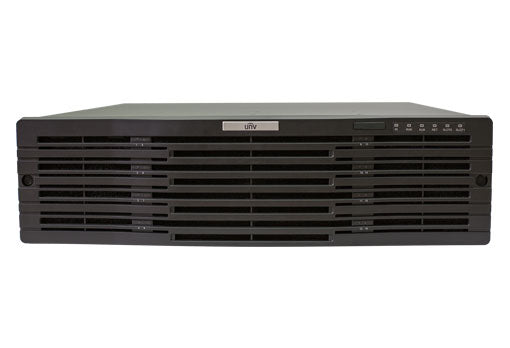

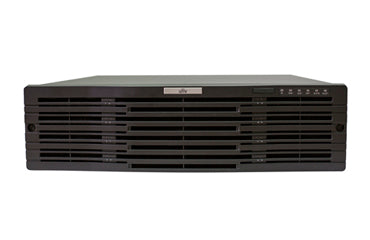

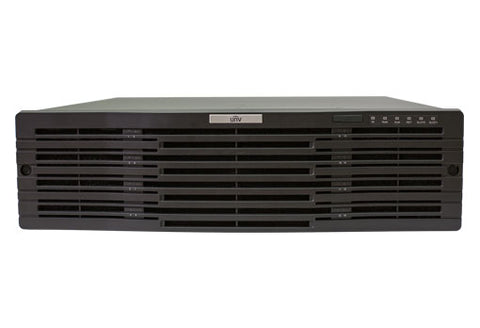

The Uniview NVR516-128E-R is a 3U rackmount enterprise NVR offering 128-channel IP camera support, advanced RAID options, and up to 8K output. Ideal for high-density commercial or multi-site deployments, this NVR supports Ultra265 compression, ONVIF compatibility, and full smart analytics pass-through for AI-powered camera features.
Key Features
- 128-channel IP camera input, ONVIF-compliant
- Dual HDMI & VGA outputs, with HDMI1 up to 8K resolution
- Ultra265/H.265/H.264 decoding, up to 32MP recording resolution
- RAID 0/1/5/6/10/50/60 with 16 hot-swap SATA bays (16TB max per drive)
- Redundant power supply supported for enterprise uptime
- Supports advanced VCA, UMD, people counting, vehicle detection, metadata, and thermal/temperature events (when used with compatible IPC)
- N+1 hot spare failover support, ANR, cloud upgrade ready
Technical Specifications
| Video Inputs | 128-ch IP video input |
|---|---|
| Decoding Capability | Up to 2×32MP, 8×4K, or 32×1080p @30fps |
| HDMI Output | HDMI1 up to 8K, HDMI2 up to 4K |
| Live View Display | 1/4/6/8/9/16/25/36/64 |
| Smart Functions | Face Detection, Vehicle Detection, UMD, People Counting, Traffic Monitoring, SIP |
| Hard Drive Bays | 16 × SATA, up to 16TB each |
| RAID Support | RAID 0/1/5/6/10/50/60 |
| Network Bandwidth | 640Mbps incoming / 640Mbps outgoing |
| Power Supply | AC 100–240V, redundant PSU supported |
| Dimensions | 482 × 533 × 131 mm (3U rackmount) |
| Certifications | CE, FCC, UL, RoHS, WEEE |
Looking to spec this model into a large-scale commercial deployment? Contact our team →
